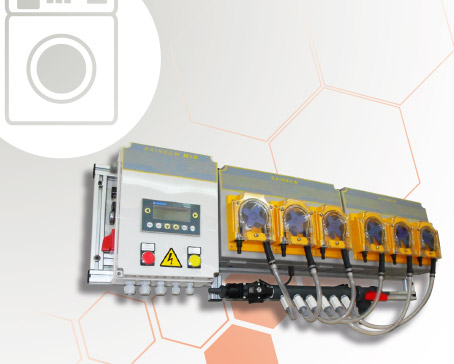

RAINBOW.MID SERIES

PERISTALTIC MULTIMACHINE

MULTIMACHINE PERISTALTIC CENTRAL EQUIPMENT FOR DOSING CHEMICAL PRODUCTS (liquids and powder) IN UP TO 4 LAUNDRY MACHINES WITH MAXIMUM LOAD OF 55 KG
THE SYSTEM ALLOWS TO DOSE UP TO 7 LIQUID CHEMICAL PRODUCTS AND 2 POWDER CHEMICAL PRODUCTS
IT CONTAINING A MICROPROCESSOR (PLC) MANAGING THE DOSING PROCESS
ONE EMBEDDED COMUNICATION BOARD MANAGES DATA EXCHANGES BETWEEN THE DIFFERENT MODULES

TECHNICAL FEATURES

POWER SUPPLY 230 Vac singlephase
POWER CONSUPTION 1,5A - 330W
PERISTALTIC PUMPS POWER SUPPLY 230 Vac
PUMPS FLOW RATES 30-60-90-120 lt/h
COLLECTOR MATERIAL PVC
PUMPS HOSE EPDM
DATAS MEMORY 3 KB
PROGRAM MEMORY 64 KB
COMUNICATION PROTOCOL RS485
PC COMUNICATION PROTOCOL RS485 Modbus
PDA COMUNICATION SOCKET Bluetooth
