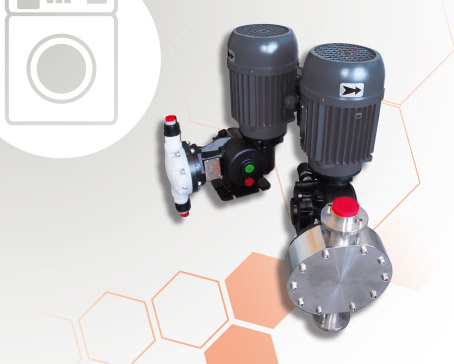

TAURUS SERIES

MECHANICAL DIAPHRAGM DOSING PUMP

THESE PUMPS ARE PLUNGER PISTON METERING PUMPS FEATURING A SPRING RETURN STROKE IN AN ALLUMINIUM HOUSING WITH OIL BATH
EACH PUMPIS EQUIPPED WITH MANUAL FLOW ADJUSTMENT AND CAN BE EQUIPPED WITH AN ELECTRIC ACTUATOR WHICH ACCEPTS A 4÷20 mA OR INVERTER
SS316, PP, PVDF or PVC PUMP HEAD
PTFE DIAPHRAGM

TECHNICAL FEATURES

TM.2-4-6 DIAPHRAGM VERSION

THREE-PHASE 0,37kW - SINGLE-PHASE 0,55 kW

MODELS Ø DIAPHRAGM L.STROKE STROKES/min FLOW RATES PRESSURES CONNECTIONS WEIGHTS SS316 WEIGHTS PVC/PP/PVDF
TM210858 108 mm 4mm 58 60,0 lt/h 10 bar 3/8” g.f. 13,3 kg 10,1 kg
TM210878 108 mm 4mm 78 80,0 lt/h 10 bar 3/8” g.f. 13,3 kg 10,1 kg
TM2108116 108 mm 4mm 116 120,0 lt/h 10 bar 3/8” g.f. 13,3 kg 10,1 kg
TM213858 138 mm 6mm 58 155,0 lt/h 7 bar 3/4” g.f. 18,4 kg 12,3 kg
TM213878 138 mm 6mm 78 220,0 lt/h 7 bar 3/4” g.f. 18,4 kg 12,3 kg
TM2138116 138 mm 6mm 116 310,0 lt/h 7 bar 1” g.f. 18,4 kg 12,3 kg
TM216558 165 mm 6mm 58 230,0 lt/h 5 bar 1” g.f. 22,0 kg 13,2 kg
TM216578 165 mm 6mm 78 330,0 lt/h 5 bar 1” g.f. 22,0 kg 13,2 kg
TM216578 165 mm 6mm 116 460,0 lt/h 5 bar 1” g.f. 22,0 kg 13,2 kg
