FW SERIES

PERISTALTIC PUMPS

SELECT. FLOW RATES 30,60,90,120 lt/h
FLOW RATE REDUCTION MAX 10%, 10÷100 lt dosed
SUITABLE FOR HIGH VISCOUS LIQUIDS (2500 mPa.s liquid viscosity with 8x12 tubes)
LONG LIFE HOSE
MODULAR CONSTRUCTION for multiple pairing
IP65 IN PROTECTION DEGREE

TECHNICAL FEATURES

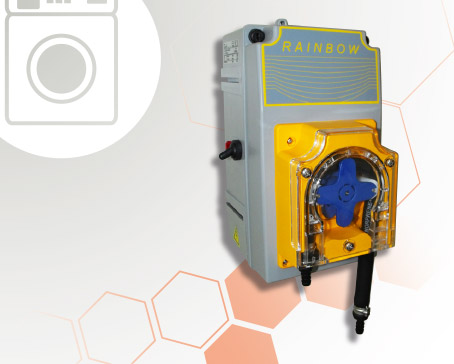

FW.120

FLOW RATES PRESSURES POWER SUPPLY REVOLUTION DISPLAC. FITTINGS DUTY CICLE
select. 30,60,90,120 lt/h 100 kPa (1bar-14,5 psi) 100÷240 Vac, 50/60 Hz, 55 VA 12 ml Ø8x12 mm 10x14 mm 50%-30 min
