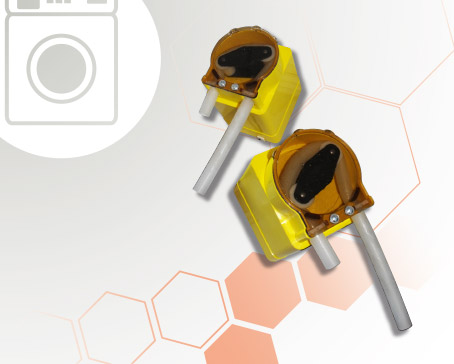

FH SERIES

PERISTALTIC PUMPS

FLOW RATE UP TO 1200 ml/min
FLOW RATE REDUCTION MAX 10%, 10÷100 lt dosed
SUITABLE FOR HIGH VISCOUS LIQUIDS (2500 mPa.s liquid viscosity with 8x12 tubes)
LONG LIFE HOSE 1000 lt for compatible liquids
MODULAR CONSTRUCTION for multiple pairing
IP65 IN PROTECTION DEGREE
INEXPENSIVE AND PRACTICAL INSTALLATION
POSSIBILITY OF CUSTOMIZATION ON THE PUMP HEAD (UPON REQUEST)

TECHNICAL FEATURES

FH.900

FLOW RATES PRESSURES POWER SUPPLY REVOLUTION DISPLAC. FITTINGS DUTY CICLE
fixed 54 lt/h 100 kPa (1bar-14,5 psi) 100÷240 Vac, 50/60 Hz, 55 VA 7,5 ml Ø8x12 mm 50%-30 min

FH.1200

FLOW RATES PRESSURES POWER SUPPLY REVOLUTION DISPLAC. FITTINGS DUTY CICLE
fixed 72 lt/h 100 kPa (1bar-14,5 psi) 100÷240 Vac, 50/60 Hz, 55 VA 10 ml Ø8x12 / 10x14 mm 50%-30 min
