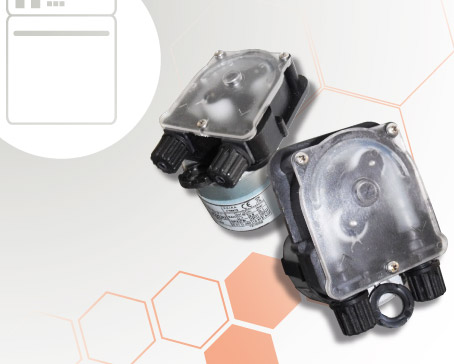

NY SERIES

FIXED FLOW RATE PUMP FOR BAR DISHWASHER

RAPID ASSEMBLY
LIGHT WEIGHT AND SMALL
HOSE REPLACEABLE WITHOUT REQUIRING SPECIAL TOOLS
MINIMUM UPKEEP REQUIREMENT
IP40 PROTECTION DEGREE
INEXPENSIVE INSTALLATION AND PRACTICAL

TECHNICAL FEATURES

FLOW RATE fixed 1,5lt/h (NY.02), 2,5lt/h (NY.03)
PRESSURE 100 kPa (1 bar - 14,5 psi)
POWER SUPPLY 200 ÷ 240VAC, 50/60 HZ, 55VA (24V-110V opt)
REVOLUTION DISPLAC 1 ml
TOTAL PUMP HEAD 10 m water c.
LIQUID VISCOSITY 10 mPa.s with tubes Ø4x6 mm
TUBE LIFE 350 lt max for compatible liquids
FLOW RATE REDUCTION max 10% 30÷350 lt dosed
DUTY CICLE 100 %
FITTINGS Ø4x6 mm
DIMENSIONS 85x65x65 mm
