DI.FO

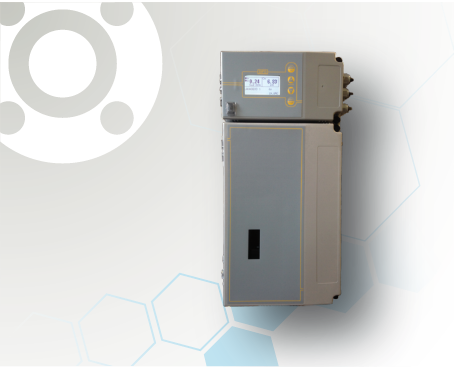

Chlorine.Meter SERIES - MULTIFUNCTION INDUSTRIAL CHLORINE METER

OUTPUT RELAY AS SET POINTS, MAXIMUM AND MINIMUM ALARMS, PWM Proportional Regulating of the Time, PFM Proportional Pulse Regulation, SELF-CLEANING
IT IS POSSIBLE TO HAVE LOW VOLTAGE 24V enabling the Monitoring of Smaller Doses with Solenoid Valves and without the addition of other Transformer, with a Security Power Supply
GALVANIC SEPARATION BETWEEN MICROPROCESSOR / INLETS AND CURRENT OUTLETS
OFF INLET to switch off the Regulation Relay and to Stop the Colorimeter Cycle, Possible FLW INPUT to control the water flow in the instrument, “OK” OUTPUT Remotely Controls the Correct Instrumentation Function
Visualization: ALARMS / ERRORS (Diagnostic), DATE / HOUR (always present, also without Power Supply), with the possibility to START/STOP THE COLORIMETER FUNCTION pre-set hours (i.e. nightime)
PROGRAMMING & CALIBRATION SAVED IN MEMORY
RS232C SERIAL OUTPUT FOR PC, PLC Connector Available on CANNON 9 Connection or Terminal Block

TECHNICAL FEATURES

RANGE CL 0÷6 ppm
CL/pH 0÷6 ppm / 0÷14 pH
CL/pH/Rx/T°0÷6 ppm / 0÷14 pH / 0÷2000 mV / / 0÷100 °C
POWER SUPPLY 220/230 VAC 50-60 Hz ±10%
