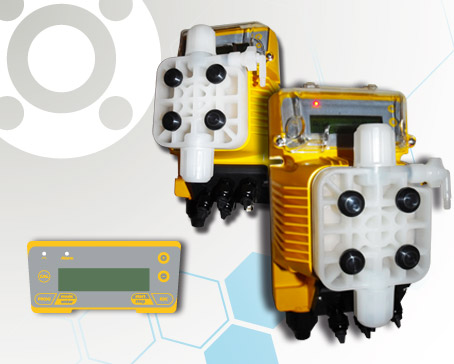

ATHENA.PR SERIES

ELECTROMAGNETIC DOSING PUMPS

PVDF PUMP HEAD suitable for chemical used in the Industrial, Waste Water Treatment and Potable Water applications
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
STEADY DOSING Stabilized Multi Power Supply 100÷240 Vac 50/60 Hz with reduced consumption
QUICK CONNECTIONS
MANUAL PRIMING VALVE
IP65 PROTECTION
ADJUSTABLE FLOW RATEa knob on the Front Panel
POWER-ON and LEVEL ALARMS LED
LCD BACK-LIT DISPLAYwith 2 - 16 Digit Rows PROGRAMMING AND WORKINGin 5 Selectable Languages
SECURE PASSWORD AVAILABLE
FLOW SENSOR CONFIGURED


pH 0÷14 - Rx -999÷+999 mV measuring range
manual/automatic temperature compensation (pH)
4÷20 mA output on all the recording scale
manual/automatic calibration with probe efficiency evaluation

TECHNICAL FEATURES

  • ATHENA 2
  • ATHENA 3
  • ATHENA 4
  • GEA 2
  • GEA 3
  • GEA 4

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
3 l/h 12 bar 0,31 4x6 160 14 watt 3 kg
4 l/h 10 bar 0,42 4x6 160 14 watt 3 kg
5 l/h 8 bar 0,52 4x6 160 14 watt 3 kg
8 l/h 2 bar 0,83 4x6 160 14 watt 3 kg

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
7 l/h 16 bar 0,39 4x6 300 28 watt 4 kg
10 l/h 10 bar 0,55 4x6 300 28 watt 4 kg
14 l/h 6 bar 0,78 4x6 300 28 watt 4 kg
16 l/h 2 bar 0,89 4x6 300 28 watt 4 kg

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
30 l/h 5 bar 1,67 8x12 300 28 watt 4 kg
40 l/h 4 bar 2,22 8x12 300 28 watt 4 kg
55 l/h 2 bar 3,05 8x12 300 28 watt 4 kg
110 l/h 0,1 bar 6,11 8x12 300 28 watt 4 kg
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
3 l/h 12 bar 0,31 4x6 160 14 watt 3 kg
4 l/h 10 bar 0,42 4x6 160 14 watt 3 kg
5 l/h 8 bar 0,52 4x6 160 14 watt 3 kg
8 l/h 2 bar 0,83 4x6 160 14 watt 3 kg
Read More
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
7 l/h 16 bar 0,39 4x6 300 28 watt 4 kg
10 l/h 10 bar 0,55 4x6 300 28 watt 4 kg
14 l/h 6 bar 0,78 4x6 300 28 watt 4 kg
16 l/h 2 bar 0,89 4x6 300 28 watt 4 kg
Read More
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
30 l/h 5 bar 1,67 8x12 300 28 watt 4 kg
40 l/h 4 bar 2,22 8x12 300 28 watt 4 kg
55 l/h 2 bar 3,05 8x12 300 28 watt 4 kg
110 l/h 0,1 bar 6,11 8x12 300 28 watt 4 kg
Read More
