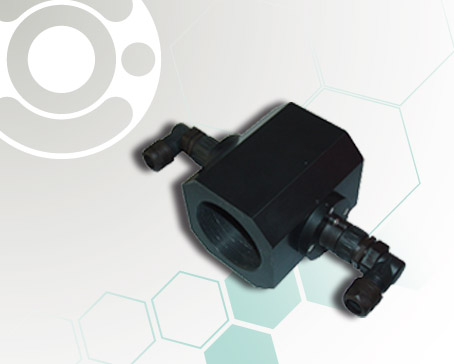

E.CT 2 TURBIDITY

E.CT 1/ 2 TURBIDITY

OUTFLOW TURBIDITY MEASUREMENT CELLS
Only for NEXUS.TBSERIES
Applications: WATER TREATMENT PLANT (downstream of filtration and decantation process section), AGING FACILITIES OF WASTEWATER REUSE FOR AGRICULTURAL OR INDUSTRIAL PURPOSES, FOOD INDUSTRY (beverages), SWIMMING POOL
The principle of measurement is the DEVIATION OF LIGHT PRODUCED BY SUSPENDED PARTICLES in the liquid
Thanks to the DUAL SENSOR is possible to make measurement of TURBIDITY AT LOW CONCENTRATIONS with high accuracy and repeatability
The cells is INSTALLED DIRECTLY IN LINE, PIPE or BY-PASS
THE FLOW VELOCITY DOES NOT AFFECT THE MEASUREMENT

TECHNICAL FEATURES

E.CT 1 (AISI SS) E.CT 2 (PVC)
RANGE 0,00÷100 FTU 0,00÷100 FTU
MAX PRESSURE 6 bar 6 bar
MAX TEMPERATURE 90°C 90°C
MATERIAL SS316L, 2”1/2 M threaded connections, Black PTFE internal coating, Tempered glass door Black PVC, 2”1/2 F threaded connections Transparent PVC door
