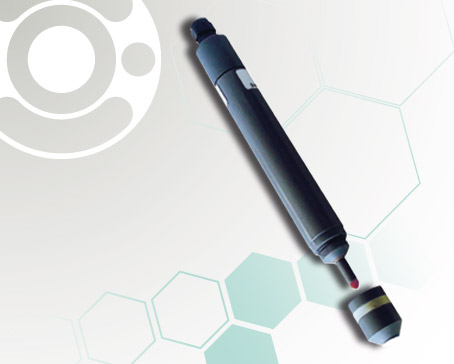

D.CLP CHLORINE

POTENTIOSTATIC SENSOR for the measure of FREE OR TOTAL CHLORINE

TECHNICAL FEATURES

MODELS D.CLP 01 I
free inorganic
chlorine
D.CLP 02 O
free organic
chlorine
D.CLP 03 I
free inorganic
chlorine
D.CLP 04 I
free inorganic
chlorine
D.CLP 05 I
free inorganic
chlorine
D.CLP 06 I
free inorganic
chlorine
D.CLP 07 I
free inorganic
chlorine
D.CLP 08 I
free inorganic
chlorine
D.CLP 09 I
free inorganic
chlorine
D.CTO II
total chlorine
D.BC 01
chlorine dioxide
RANGE (ppm) 0÷10 0÷10 0÷10 0÷200 0÷2 0÷1 0÷5 0÷1 0÷5 0÷10 0÷10
RANGE pH 4÷8 4÷12 4÷11 4÷8 4÷8 5÷9 5÷9 5÷9 5÷9 0÷14 0÷14
RESOLUTION (ppm) ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01 ±0,01
TEMPERATURE 45°C 45°C 45°C 45°C 45°C 50°C 50°C 70°C 70°C 70°C 45°C
PRESSURE 1 bar 0,5 bar 0,5 bar 0,5 bar 0,5 bar 5 bar 5 bar 8 bar 8 bar 0,5 bar 0,5 bar
DIAPHRAGMS
ELECTROLYTES
VOLTAGE 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC 12÷30 VAC
FLOW RATE ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour) ≥30 lt/h (stabilization time avarage 15 min, max 1 hour)
SIGNAL OUTPUTS 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement) 4÷20 mA (output of current signal proporional to the measurement)
CABLE max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m max 15 m
MATERIAL PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC
DIMENSIONS 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD) 225 x 25 mm (HxD)
