WM.R

WATER METERS

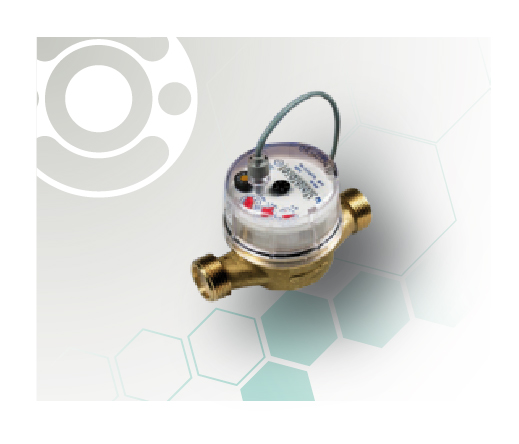

THREADED METER FOR COLD/HOT WATER, Reed Type Pulse Emitter and Flow Rate Reading
DRY DIAL
ROLLER READING
4 or 1 PULSE/LITER
COLD WATER UP TO 30°C
HOT WATER UP TO 90°C
1/2”÷2” (13mm ÷ 50mm) CONNECTIONS

TECHNICAL FEATURES

Ø INCH Ø mm MAX FLOW RATE
Q max m3/h
NOMINAL FLOW RATES
m3/h Qn
MINIMUM FLOW RATES (±5% ACCURACY)
Q t min lt/h
TRANSITION FLOW RATES (±5% ACCURACY)
Q t lt/h
LENGTH WITHOUT CONNECTIONS
mm
WIDTH
mm
HEIGHT
mm
MAXIMUM READING
m3
1/2” 13 3 1,5 30 120 110 80 90 10.000
3/4” 20 5 2,5 50 200 110 80 90 10.000
1” 25 7 3,5 70 280 160 100 120 100.000
1”1/494 mm 30 10 5 100 400 160 100 120 100.000
1”1/2 40 20 10 200 800 200 110 130 100.000
2 50 30 15 450 3.000 300 152 200 100.000
