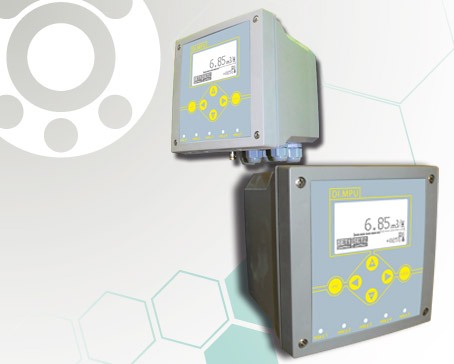

DI.MPU 03

FLOW METER WITH ULTRASONIC SENSOR

THE DSP TECHNOLOGY (DIGITAL SIGNAL PROCESSING) ENSURE A LOW SENSIBILITY OF THE INSTRUMENT AGAINST POTENTIAL TRANSIENT FACTORS. THE SIZE OF THE PIPE MAY VARY 20 ÷ 4000 MM (USING DIFFERENT TRANSDUCERS). SINCE THE TRANSDUCERS ARE APPLIED EXTERNALLY TO THE TUBE, NOT IN CONTACT WITH THE LIQUID AND HAVE NO MOVING PARTS, THE TRANSMITTER WILL NOT BE DAMAGED BY WEAR, BY FOULING OR PRESSURE
All CONFIGURATION USER-ENTERED VALUES are saved in EE PROM, PW protected
The Transmitter is EQUIPPED WITH A CLOCK TO STORE THE MEASURE DETECTION DATE AND TIME operated by battery
IN CASE OF POWER FAILURE will be necessary TO RE-SET THE LOST. IN CASE OF INCORRECT SETTING OF THE TOTALIZER, THE OTHER FUNCTIONS ARE NOT COMPROMISED
Is composed by a DIGITAL CONVERTER AND 2 CLAMP-ON OR INSERTION ULTRASONIC TRANSDUCERS

TECHNICAL FEATURES

RANGE
  • flow rate 0÷9999 mc/h
  • level 0,30÷5.00 mt
  • temperature 0÷100 bar
PRECISION ±0,2% F.S.
DEVICES (representatives for calculating flow PMD)
  • RETTANG (rectangular weir)
  • TRAPEZ (Cipolletti weir)
  • VENTURI (Venturi weir)
  • PARSHALL (Parshall flume)
  • L LEOPOLD (Leopold Lagco flume)
  • STRAM. V (“V” notch)
  • OTHER
(exponent freely programmable, table with 20 points for free programming)
TOTALIZER 1 x absolute 9 digit not resettable saved on flash EE PROM
1 x partial 9 digit resettable
HARDWARE Graphic LCD STN 128x64 back lighted somultaneous display of: level/flow and temperature, measurement, digital outputs status, recording status and malfunctioning, pump hours of functioning. Last 6 alarms event keyboard (4 digit) for programming
CONTROLS 6 keys
DATA LOGGER interno con flash 4 MB Internal flash 4 MB
SERIAL OUTPUT n.1 RS485 separata galvanicamente isolated
ANALOG OUTPUT n°2 ISOLATED AND PROGRAMMABLE
RELAY OUTPUT n°5 per set-point/totalizer repeat
n°1 per alarm (max load 1A a 230 VAC resistive)
DIGITAL INPUTS n°5 programmable
POWER SUPPLY 90÷260 VAC 50/60 HZ - (optional 24 VAC) transformer isolation 4 KV
POWER CONSUPTION < 12W
ENCLOSURE ABS wall mounting, IP65, 230x185x120 mm, weight 1,0 Kg
