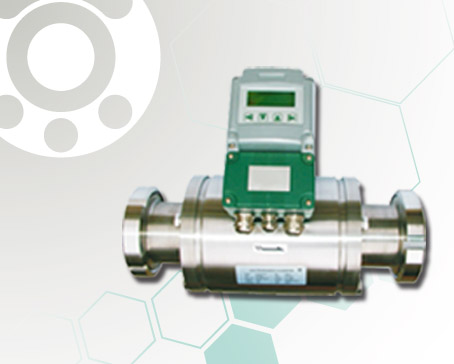

DI.MPO 03

MAGNETIC INDUCTION FLOW METER

THE MAGNETIC FIELD EXCITATION IS A PROGRAMMABLE RECTANGULAR WAVE WITH LOW FREQUENCY. IT INCREASES THE STABILITY OF FLOW MEASUREMENT AND HAS LOW CONSUMPTION
It uses 16 BIT MICROPROCESSOR, fast processing and high accuracy
DUAL DIRECTION MEASUREMENT FUNCTION it can display forward direction flow-rate and reverse direction flow rate
3 INSIDE COUNTERS can respectively display forward direction volume, reverse direction volume and the different volume of both directions
Multifunction intelligent transmitter has SELF-TEST AND SELF-DIAGNOSIS FUNCTION
EEMPROM MEMORY can save the setting and the counters when power off
THE ISOLATING VOLTAGE IS MORE THAN 500 V

TECHNICAL FEATURES

AMBIENT CONDITIONS -40°C ÷ +75°C ambient temperature
0% ÷ 100RH, 65°C relative humidity
86 ÷ 106 bar ambient pressure
OPERATING CONDITIONS
  • fluid conductivity
    • 5μS/cm
  • pressures
    • 1,6 Mpa (DN10÷DN150)
  • temperature
    • Remote Vers. <120°C (PTFE)
    • Compact Vers. -40 ÷ +75°C/li>
POWER SUPPLY 90 ÷ 250 VAC, 24 VAC or 18 ÷ 36 VAC / consuption 10W
DN PIPE DN10 ÷ DN150
SPEED RANGE 0,2m/s ÷ 10m/s
PIPE MATERIAL SS 321
COATING TYPE PTFE, PFA
ELECTRODES MATERIAL SS 316 TI, Hastelloy B, Hastelloy C, Titanium, Tantalum
FLANGED MATERIAL swivel DIN 11851 / DIN CLAMP in SS
PROTECTION DEGREE Remote Vers. IP67/IP68 (optional) - Compact Vers. IP67
ACCURACY ±0,5% of the measured value for velocity 0,5÷10 m/s
REPEATABILITY 0,1% of the measured value for accuracy
ANALOG OUTPUT 4÷20 mA, 0÷1.000 ohm
FREQUENCY OR PULSE OUTPUT frequency can be set between 1÷10.000 Hz foe forward direction and reserve direction pulse width can be for the output state H or L
SERIAL OUTPUT (optional) RS485 with protocoll MODBUS
DAMPING 0,1÷99 sec.
FLOW CUT-OFF adjustable 0,0÷9,9 %. The value for flow cut off is stated as a percentage that relates to the upper range value of the flowrate
