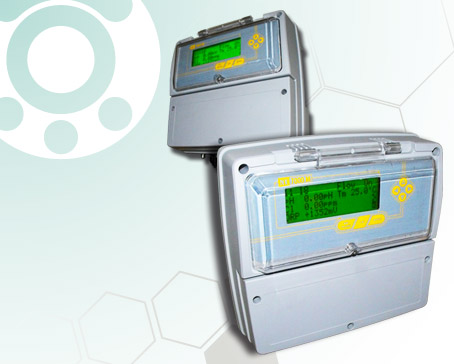

NX.7000

INDUSTRIAL INSTRUMENTS

COMPACT EASY SETTING DEVICE CONTROL INSTRUMENT, ALLOW THE MEASURING OF: pH/Rx, FREE CHLORINE, TEMPERATURE, 2 INPUT FOR LEVEL PROBE FOR CHEMICAL PRODUCTS
HIGH RESOLUTION MEASURE
IP65 ENCLOSURE BOX
3 RELAY WITH POWER SUPPLY FOR DOSING PUMP
2 RELAY DRY CONTACT FOR ALARM STATUS
2 4÷20 mA CURRENT OUTPUT
2 FREQUENCY CHANNEL “OPEN COLLECTOR”
SERIAL PORT RS485 WITH MODBUS RTU STANDARD
ALPHANUMERIC DISPLAY WITH 4 LINE AND 20 LETTERS
BY RELAY MENU IT IS POSSIBLE TO DRIVE THE ANALOGICAL DOSING PUMP

TECHNICAL FEATURES

RANGE pH - 0÷14,00
RX - ±1500 mV
CD - 1÷200 - 10÷2000 - 100÷20000 - 200÷50000 μS
CL (amperometric-potentiostatic) / CL DIOXIDE (potentiostatic probe)
0÷0,50 - 0÷1,00 - 0÷2,00 - 0÷5,00 - 0÷10,0 - 0÷20,0 - 0÷200,0 ppm
TEMPERATURE - 0÷100 °C with PT100
SINGLE PARAMETER VERSION CHLORINE
DOUBLE PARAMETER VERSION PH-CHLORINE
POWER SUPPLY 100÷240 VAC 50/60 Hz
