NX.6500 S

INDUSTRIAL INSTRUMENTS

THE NEXUS.6500 SERIES DEVELOPED FOR WATER TREATMENT AND INDUSTRY, ALLOW THE MEASURING OF: pH/REDOX, CONDUCTIVITY, TURBIDITY, CHLORINE, OXYGEN
2 ANALOGUE OUTPUTS output 1 programmable for measure, output 2 programmable for measure/temperature/PID regulation, outputs limits are freely programmable between the range of measures
4 DIGITAL OUTPUTS on/off set point: set of the operating range (hysteresis /direction) and of start/stop time 000÷999 sec
PID REGULATION pulse frequency or PWM (2 set point)
ALARM reporting: instrumental anomalies, minimum, maximum, set point delay, permanence time (Live Check)
ELECTRODES WASHING programming of the time leg, frequency: 00:00÷24:00 hh:mm, minimum time leg: programmable, during the washing phase, all digital and analogue outputs are freezed

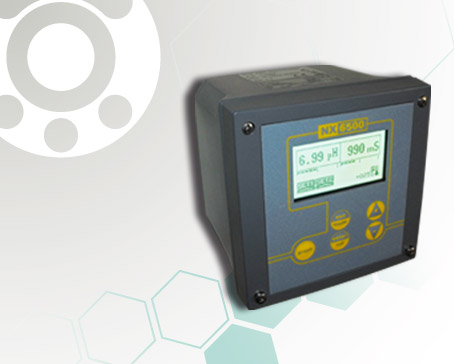

WATERPROOF VERSION 144x144x120 mm

TECHNICAL FEATURES

  • DATA STORAGE INTERNAL FLASH 4 MB MEMORY (NEAR TO 16.000 RECORDS)
  • DIGITAL INPUT TO DISABLE DOSAGE
  • RS485 SERIAL INPUT FOR SET UP AND REAL TIME DATA ACQUISITION FROM REMOTE OR FOR STORED DATA DOWNLOAD (using a dedicate SW), USB TO DOWNLOAD (software required) MODBUS RTU COMMUNICATION PROTOCOL
  • MANUAL CONTROLS POSSIBILITY TO SIMULATE ALL THE ANALOGUE AND DIGITAL PUTPUTS USING THE KEYBOARD
  • TEMPERATURE COMPENSATION VIA TEMPERATURE SENSOR PT100 WITH 3 OR 4 WIRES, OR PT1000
  • 128x64 PIXEL GRAPHIC DISPLAY, BACK LIGHTED
  • VISUALIZATION SIMULTANEOUS VALUES OF THE MEASURE (NUMERIC+BARGRAPH) AND TEMPERATURE, ANALOGUE OUTPUTS VALUE IN SCROLLING, GRAPHIC ICONS SHOWING: DIGITAL OUTPUTS STATE, DATA STORAGE, WASHING CYCLE, ALARMS

RANGE pH / Rx - 0÷14,00 / ±1500 mV
pH / CD - 0÷14,00 / 0÷20 / 0÷200 / 0÷2.000 / 0÷20.000 μS
pH / OX - 0÷14,00 / 0÷20 ppm
TB / OX - 0÷0,1 / 0÷10,0 / 0÷100 FTU NTU / 0÷20 ppm
pH / CL - 0÷14,00 / 0÷2 / 0÷5 / 0÷10 / 0÷200 ppm
pH / CL - 0÷20 / 0÷200 / 0÷2.000 / 0÷20.000 μS / 0÷2 / 0÷5 / 0÷10 / 0÷200 ppm
Suspended Solids / OX - 0÷9999 gr/l / 0÷200 ppm
POWER SUPPLY 100÷240 VAC 50/60 Hz
