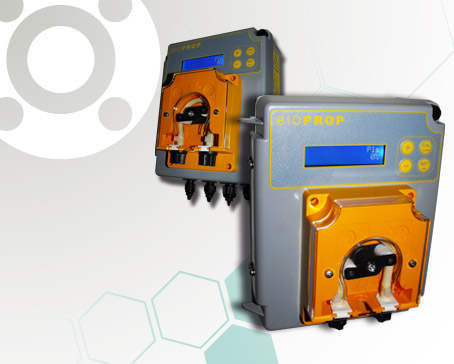

BIO.PROP

PERISTALTIC PUMPS

DOSING SPEED REGULATION VIA SOFTWARE
TANK LEVEL CONTROL
ON/OFF/SWITCH-PRIMING
16x2 DISPLAY (BLUE/WHITE)
TENSION INPUT 240 Vac “electrical signal from circulating pumps”
REMOTE ALARM THROUGH RELAY (Dry Contact)
SETTING OF THE PARAMETERS VIA MENU
COSTANT AND PROPORTIONAL DOSING SYSTEM
Water Treatment Applications, Peroxide for Swimming Pools
Input mA Signal Current (0÷20 mA) to Control Flow Rate Pump in Proportional Mode
Input Volage Free (Pulse Signal) to Control Flow Rate Pump in Proportional Mode
Batch Function

TECHNICAL FEATURES

FLOW RATES PRESSURES POWER SUPPLY
2,5÷25 ml/h 1,5 bar 100÷240 Vac
15,1÷151 ml/h 1,5 bar 100÷240 Vac
151,2÷1512 ml/h 1,5 bar 100÷240 Vac
540÷5400 ml/h 1,5 bar 100÷240 Vac
975÷9750 ml/h 1,5 bar 100÷240 Vac
