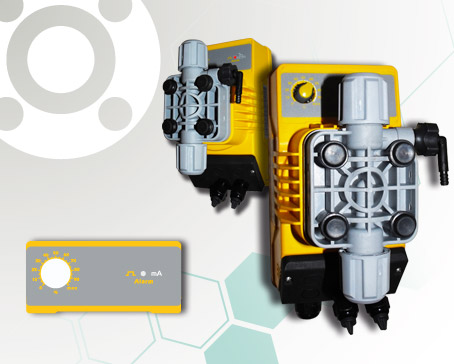

HYDRA.MA

ELECTROMAGNETIC DOSING PUMPS

PVC PUMP HEAD
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
FLOW RATE MANUAL ADJUSTMENT 0÷100%
MANUAL PRIMING VALVE
WALL MOUNTING with fixing bracket (included)
analogue dosing pump with costant flow rate manually adjustable by control knob on the front panel and proportional flow rate according to an external analogue (4÷20 mA), POWER-ON LED indicator and level control input
2 different operating modes are: COSTANT (switch in “C” position) the pump constantly dispenses the percentage selected with potentiometer - PROPORTIONAL (switch in “P” position) the pump doses proportionally to the input signal (4÷20 mA), Internal Microswitch

TECHNICAL FEATURES

MODELS E TECHNICAL FEATURES

FLOW RATES PRESSURES CC/STROKE CONNECTIONS IMP./MIN PROTECTION DEGREE DIMENSIONS
5 l/h 8 bar 0,52 4x6 160 IP65 190,5x92x135,5

POWER SUPPLY
HYDRA.BL, HYDRA.MA, HYDRA.BC 100÷240 Vac, 50/60 Hz (with reduced power consuption as the solenoid only draws the required power to activate the pump, based on the working conditions) Consuption 14W
