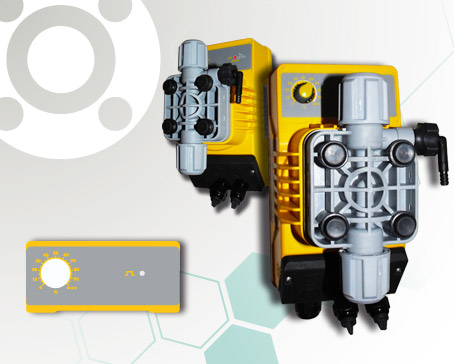

HYDRA.BX

ELECTROMAGNETIC DOSING PUMPS

PVC PUMP HEAD
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
FLOW RATE MANUAL ADJUSTMENT 0÷100%
MANUAL PRIMING VALVE
WALL MOUNTING with fixing bracket (included)
analogue dosing pump with costant flow rate manually adjustable by control knob on the front panel
POWER-ON LED indicator

TECHNICAL FEATURES

MODELS E TECHNICAL FEATURES

FLOW RATES PRESSIONI CC/STROKE CONNECTIONS STROKES/MIN. PROTECTION DEGREE DIMENSIONS
5 l/h 8 bar 0,52 4x6 160 IP65 190,5x92x135,5

POWER SUPPLY
HYDRA.BX 230 Vac 50 Hz, Consuption 12W
