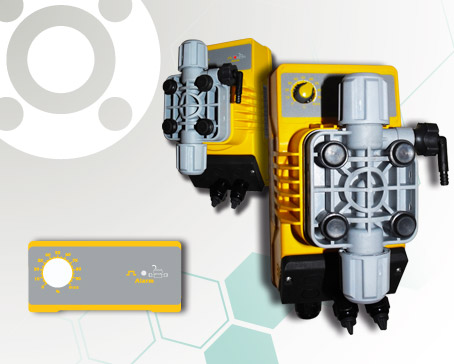

HYDRA.BC

ELECTROMAGNETIC DOSING PUMPS

PVC PUMP HEAD
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
FLOW RATE MANUAL ADJUSTMENT 0÷100%
MANUAL PRIMING VALVE
WALL MOUNTING with fixing bracket (included)
analogue dosing pump with costant flow rate manually adjustable and proportional flow rate according to a digital signal (e.g. from water meter), Power-ON Led indicator and level control input
2 different operating modes are: COSTANT (switch in “C” position) the pump constantly dispenses the percentage selected with potentiometer - PROPORTIONAL (switch in “P” position) the pump doses proportionally to the digital input signal (Division mode 4=n)

TECHNICAL FEATURES

MODELS E TECHNICAL FEATURES

FLOW RATES PRESSURES CC/STROKE CONNECTIONS IMP./MIN PROTECTION DEGREE DIMENSIONS
5 l/h 8 bar 0,52 4x6 160 IP65 190,5x92x135,5

POWER SUPPLY
HYDRA.BL, HYDRA.MA, HYDRA.BC 100÷240 Vac, 50/60 Hz (with reduced power consuption as the solenoid only draws the required power to activate the pump, based on the working conditions) Consuption 14W
