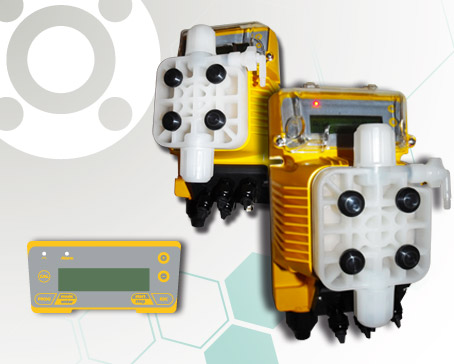

ATHENA.MR 12 VDC

ELECTROMAGNETIC DOSING PUMPS

PVDF PUMP HEAD suitable for chemical used in the Industrial, Waste Water Treatment and Potable Water applications
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
STEADY DOSING Stabilized Multi Power Supply 100÷240 Vac 50/60 Hz with reduced consumption
QUICK CONNECTIONS
MANUAL PRIMING VALVE
IP65 PROTECTION
ADJUSTABLE FLOW RATEa knob on the Front Panel
POWER-ON and LEVEL ALARMS LED
LCD BACK-LIT DISPLAYwith 2 - 16 Digit Rows PROGRAMMING AND WORKINGin 5 Selectable Languages
SECURE PASSWORD AVAILABLE
FLOW SENSOR CONFIGURED
ALARM REPETITION RELAY


Constant Flow Rate manuall adjustable, Proportional Flow Rate according to an external Analog (4÷20 mA) or Digital Signal (Water Meter)
Batch Mode
Timer Function
ppm Proportional Dosing
Input ON-OFF (Remote Control)
pH/Redox Control Meter on board
PT100 or PT1000 (Selectable) Probe Input (Thermal-Compensation)

TECHNICAL FEATURES

  • ATHENA 12 VDC

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
3 l/h 10 bar 0,25 4x6 200 6,5 watt 3 kg
4 l/h 8 bar 0,33 4x6 200 6,5 watt 3 kg
5 l/h 5 bar 0,42 4x6 200 6,5 watt 3 kg
