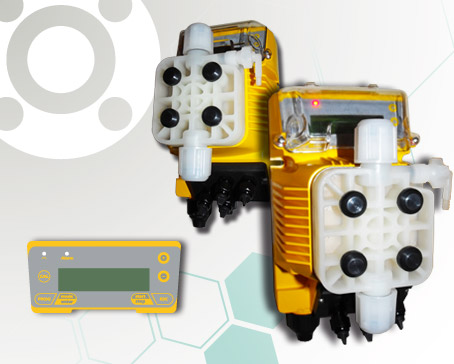

ATHENA.MP

ELECTROMAGNETIC DOSING PUMPS

PVDF PUMP HEAD suitable for chemical used in the Industrial, Waste Water Treatment and Potable Water applications
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
STEADY DOSING Stabilized Multi Power Supply 100÷240 Vac 50/60 Hz with reduced consumption
QUICK CONNECTIONS
MANUAL PRIMING VALVE
IP65 PROTECTION
ADJUSTABLE FLOW RATEa knob on the Front Panel
POWER-ON and LEVEL ALARMS LED


able to set measurement for: chlorine, hydrogen peroxide and peracetic acid
PT100 probe enables automatic compensation of temperature
repetition intervals for alarm
remoted controlled digital ON-OFF input
4÷20 mA analogic output

TECHNICAL FEATURES

  • ATHENA 1
  • ATHENA 2
  • ATHENA 3
  • ATHENA 4

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
2,5 l/h 20 bar 0,35 4x6 - 4x7 120 14 watt 3 kg
3 l/h 18 bar 0,42 4x6 - 4x7 120 14 watt 3 kg
4,2 l/h 14 bar 0,58 4x6 - 4x7 120 14 watt 3 kg

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
3 l/h 12 bar 0,31 4x6 160 14 watt 3 kg
4 l/h 10 bar 0,42 4x6 160 14 watt 3 kg
5 l/h 8 bar 0,52 4x6 160 14 watt 3 kg
8 l/h 2 bar 0,83 4x6 160 14 watt 3 kg

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
7 l/h 16 bar 0,39 4x6 300 28 watt 4 kg
10 l/h 10 bar 0,55 4x6 300 28 watt 4 kg
14 l/h 6 bar 0,78 4x6 300 28 watt 4 kg
16 l/h 2 bar 0,89 4x6 300 28 watt 4 kg

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
30 l/h 5 bar 1,67 8x12 300 28 watt 4 kg
40 l/h 4 bar 2,22 8x12 300 28 watt 4 kg
55 l/h 2 bar 3,05 8x12 300 28 watt 4 kg
110 l/h 0,1 bar 6,11 8x12 300 28 watt 4 kg
