ATHENA.AT AIR COND

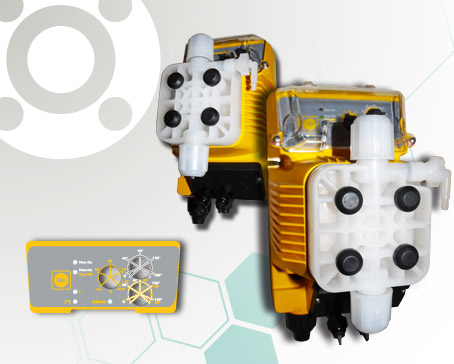

ELECTROMAGNETIC DOSING PUMPS

PVDF PUMP HEAD suitable for chemical used in the Industrial, Waste Water Treatment and Potable Water applications
CERAMIC BALL full chemical compatibilty
PTFE DIAPHRAGM unique life expectancy and compatibility with most chemicals
STEADY DOSING Stabilized Multi Power Supply 100÷240 Vac 50/60 Hz with reduced consumption
QUICK CONNECTIONS
MANUAL PRIMING VALVE
IP65 PROTECTION
ADJUSTABLE FLOW RATEa knob on the Front Panel
POWER-ON and LEVEL ALARMS LED

specifically designed to satisfy the demands of small volume dosing
the reduction of the unitary volume allows to preserve unchanged the number of the strokes
the quality of the dosing is granted by the anti-drop system of the atomizer

TECHNICAL FEATURES

  • ATHENA AIR COND

ALL DATA HAS TO BE CONSIDERED AT AMBIENT TEMPERATURE WATER AND 1,5 mt SUCTION HEIGHT

FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
2 l/h 10 bar 0,19 4x6 180 12,2 watt 3 kg
3 l/h 7 bar 0,28 4x6 180 12,2 watt 3 kg
6 l/h 2 bar 0,56 4x6 180 12,2 watt 3 kg
