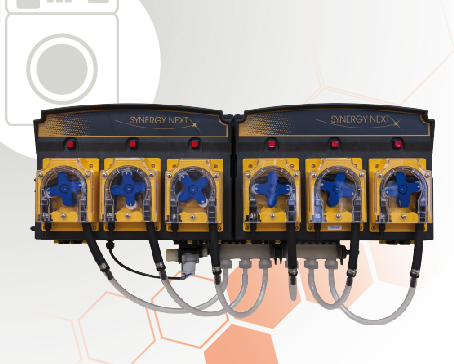

SYNERGY NEXT 30

MODULAR DOSING SYSTEMS

3/4/5/6/7 PUMPS WITH FLOW RATES OF 30/60/90/120 LT/H
RELAY MODE STANDARD
20 PROGRAMS ON PROGRAMMABLE MODE
PROGRAMMING SELECTION THROUGH FORMULA SELECTOR
IP65 PROTECTION
SUCTION LANCE NOT INCLUDED
PRE ASSEMBLED

Flushing manifold with non ceramic non returns valves and hastelloy spring Standard solenoid 3/4 24 Vac

TECHNICAL FEATURES

PUMPS FLOW RATE POWER SUPPLY POWER CONSUPTION FUSE PUMPS HOSE COLLECTOR MATERIAL SIGNAL INPUTS MANIFOLD ELECTROVALVE PROTECTION
30/60/90/120 lt/h 230 Vac monofase 0,2 A 1,2 A EPDM - SILICON - SANTOPRENE PVC 20÷160 / 160÷230 VAC 24 Vdc / 4w IP65
