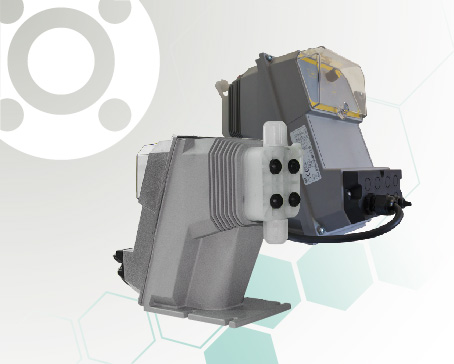

GEA BL

ELECTROMAGNETIC DOSING PUMPS

5 model that cover 0,4 to 54 l/h with an output pressure up to 20 Bar.
PVDF head and kit is suitable for almost all chemical used in Industria, Waste Watertreatment and potable water applications.
The use of Ceramic Balls improves the pumping reliability and the chemical compatibility of the wole liquid end.
Long life diaphragm, tested to give 5 years working life.
The advanced design and the manufacturing process allows the diaphragm to have a unique life expectancy
Routine diaphragm replacement no longer required
Reduced mantenance
100/240 VAC 50/60Hz tension input
Analogue dosing pump with constant flow rate manually adjustable by control dial on the front panel
2 frequency range (0÷20% or 0÷100%)
Power-ON led indicator and level control input

TECHNICAL FEATURES

  • GEA 1
  • GEA 2
  • GEA 3
  • GEA 4
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
1,5 l/h 20 bar 0,21 4x6 - 4x7 120 14 watt 3 kg
2 l/h 18 bar 0,28 4x6 - 4x7 120 14 watt 3 kg
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
3 l/h 12 bar 0,31 4x6 160 14 watt 3 kg
4 l/h 10 bar 0,42 4x6 160 14 watt 3 kg
5 l/h 8 bar 0,52 4x6 160 14 watt 3 kg
8 l/h 2 bar 0,83 4x6 160 14 watt 3 kg
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
7 l/h 16 bar 0,39 4x6 300 28 watt 4 kg
10 l/h 10 bar 0,55 4x6 300 28 watt 4 kg
14 l/h 6 bar 0,78 4x6 300 28 watt 4 kg
16 l/h 2 bar 0,89 4x6 300 28 watt 4 kg
FLOW RATES PRESSURES CC/STROKE CONNECTIONS STROKES/MIN. CONSUPTION WEIGHT
30 l/h 5 bar 1,67 8x12 300 28 watt 4 kg
40 l/h 4 bar 2,22 8x12 300 28 watt 4 kg
55 l/h 2 bar 3,05 8x12 300 28 watt 4 kg
110 l/h 0,1 bar 6,11 8x12 300 28 watt 4 kg
